Satellite Assembly, Integration and Test Centre (AITC)

1.1. Introduction on Satellite Assembly, Integration and Test Facility (AIT)

In any spacecraft development, be it a manned or unmanned mission, for scientific research or as a space transportation, a spacecraft with its payload must be able to withstand the rigors of the lift-off and ascent environment occur during the launch phase, and, the extreme thermal conditions and operational environment experienced by the spacecraft and its payload once it is in orbit. This include the effects of intense acoustic and vibration generated by engine ignitions during lift-off, shocks generated during separation of stages and fairing, shocks during deployment of solar panels, temperature variation between extreme hot temperature to extreme cold temperature, vacuum condition, solar radiation and many other effects experienced by the spacecraft. Both mechanical and thermal effects introduced a lot of constraints on the structure design of a spacecraft and therefore, it must be thoroughly tested up to the system components to ensure the survivability of the spacecraft and its payload in space. And the testing conditions on Earth should simulate as close to as what will be experience by the spacecraft and its payload upon lift-off and while in space.

The Satellite Assembly, Integration and Test Centre (AITC) completed in 2011, is a facility that will provide those testing conditions as what will be experience by the spacecraft and its payload. The cost of a building a spacecraft is never cheap, thus, making it even more important to have it thoroughly tested on ground to ensure survivability of the spacecraft exceeds what it has been design for.  Therefore, the AITC facility is constructed to accommodate the testing requirements of both ground-based instruments and fully qualified space-flight hardware.

Environmental Conditions of the Facility:

Temperature                    :               22 ± 3°C

Humidity                            :               55 ± 10% RH

Particle (<0.5 µm)         :               100,000 unit / ft3

Ground Connection      :               < 1.0 Ω

√ Device under test (DUT) Receiving Airlock

√  Spacious high bay for integration works

√  Mechanical ground support equipment such crane, forklift, etc., are available

1.2. Main function of Satellite Assembly, Integration and Test Facility (AIT)

The AIT Facility is a cleanroom of class ISO 8 (or class 100,000 according to Federal Standard 209E) with a controlled environment and equipped with a large integration hall and variety of mechanical ground support equipment. The facility is able to simulate the actual launch and space environment as experienced by a satellite and its components during lift-off, separation and in orbit as well as able to be used to conduct testing and measurement for other field such as electronics, automotive, etc. The facility is able to provide a wide spectrum of test services, all under one roof, as well as providing managerial and technical competences needed to operate the environmental test facility.

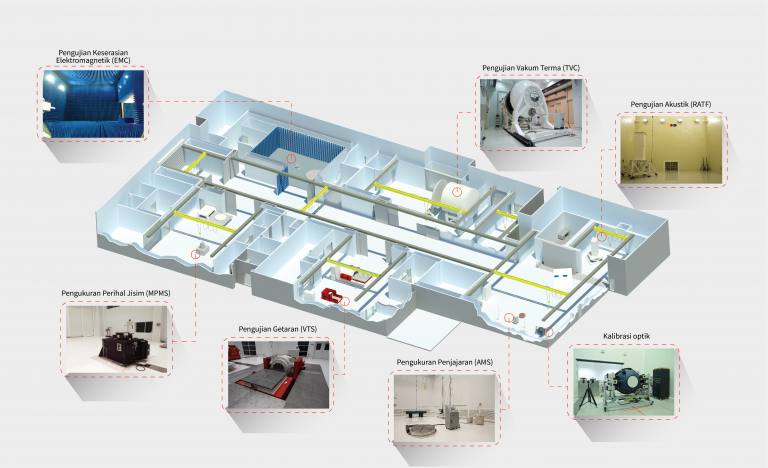

1.3 Testing and Measurement Services offered at this facility

a) Vibration Test

Vibration Test is a test to simulate the vibration induced by rocket or spaceship to ensure that the satellite can withstand the maximum expected flight environment. It can also be used to conduct vibration tests for other non-space product.

Spesifikasi Utama

Model V994

Model V9

Max Sine Thrust

289 kN

105 kN

Max Random Thrust

267 kN


Max Velocity

2.0 m/s

3.0 m/s

Useful Frequency

5 -1700 Hz

5 – 2700 Hz

Max Load (10g Vector)

2693 kg
1070 kg

b)  Reverberation Acoustic Test

Reverberation acoustic simulates vibration caused by the sound coming from the exhaust of the flight or rocket. This test facility simulates high intensity acoustic noise environment experience by satellite or spacecraft structures and components during launch.

Spesifikasi Utama Pengujian Akustik

Chamber volume

999.5 m3

Overall Sound Pressure Level (OSPL)

155 dB

Frequency Range

20 – 10,000 Hz

Sound Generation System

Gaseous Nitrogen (GN2)

c) Thermal Vacuum Test

Thermal vacuum test is a test that simulates extreme temperature and condition in space to ensure the satellite is able to operate within the range of temperature and vacuum condition in space.

Spesifikasi Utama Pengujian Vakum Terma

Operational Volume

3.7 m (ɸ)

Ultimate Pressure

10-7 mbar

Temperature Range

-180°C – 150°C

d) Electromagnetic Compatibility Test

Electromagnetic compatibility test is a test to ensure that there is no component or subsystem in the satellite that will emit interference with the operation of other components or subsystems through emission or susceptibility.

Spesifikasi Utama Pengujian Keserasian Elektromagnetik

Operational Area

5m Compliance Full Anechoic Chamber

Temperature Range

20 Hz – 40 GHz

e) Mass Properties Measurement

Mass properties measurement is performed on a satellite to measure and determine the exact physical properties of a satellite, its subsystems and components to ensure the navigation and control of satellite is as per designed.

Spesifikasi Utama Pengujian Perihal Jisim

Max Test Weight:

– Static

– Dynamic

1000 kg

Max Moment of Inertia
1463 kgm2

Range of Spin Speed

30 – 300 rpm

Min Achievable Readout at 100 rpm

44 kgmm2

f) Alignment Measurement

Alignment measurement is performed to measure the exact geometrical alignment of the components on the satellite.

Spesifikasi Utama Pengukuran Penjajaran

Theodolite System Accuracy

0.5 arcsecond
Rotary Table:
– Indexing Accuracy

– Repeatability

± 5 arcsecond

± 1 arcsecond
